SV550 APO Triplet Refractor with 80mm Aperture and Fast f/6 Focal Ratio Great Travel Telescope for Deep-sky Observation

$1,845.59$2,537.29

SKU: 3256806228147565 Category: Tag:

Description



  • Field of View:
  • Eyepiece diameter: 1.25/2 Inch
  • Water Resistance Level: IPX4
  • Objective Lens Diameter: 80mm
  • Lens Coating Description: SMC
  • Magnification: 160X
  • Focus Type: DETACHED
  • Material: Metal
  • Model Number: SV550
  • Type: Refractor
  • Brand Name: svbony
  • Focal Length: 480mm
  • Focal Ratio: f/6
  • Telescope Type: Refractor
  • Resolution: 1.45 arc seconds
  • Glass material: FPL151
  • dovetail plate length: 150-175mm
  • barrel weight: 2900g
  • Lens design: apochromatic
  • Coating: Fully Multi-coated
  • Tube material: Aluminum
  • Focuser: 2.5″ rack-and-pinion, dual speed (1/10)
  • Tube travel: 80mm
  • Additional thread: M63x1 female thread for photo adaptions
  • Load bearing of focuser: 5kg
  • Dew shield type: Retractable















SVBONY SV550 80F6 APO OTA review
https://www.youtube.com/watch?v=r6TGd7M1EX0&t=6s
Author:Natural Portraits

Note:

Dear users: Recently, some users have reported problems with SV550 80F6 with CAA and EAF, please refer to our collocation demonstration plan (our 1x flat-field mirror consists of three parts by default: flat-field mirror body adapter ring). Through this plan, you It can solve the problem that the EAF thread is too short and cannot focus accurately (please note: our 1x flat-field lens consists of three parts: the flat-field lens body extension tube adapter ring, this solution requires you to remove the flat-field lens extension tube)

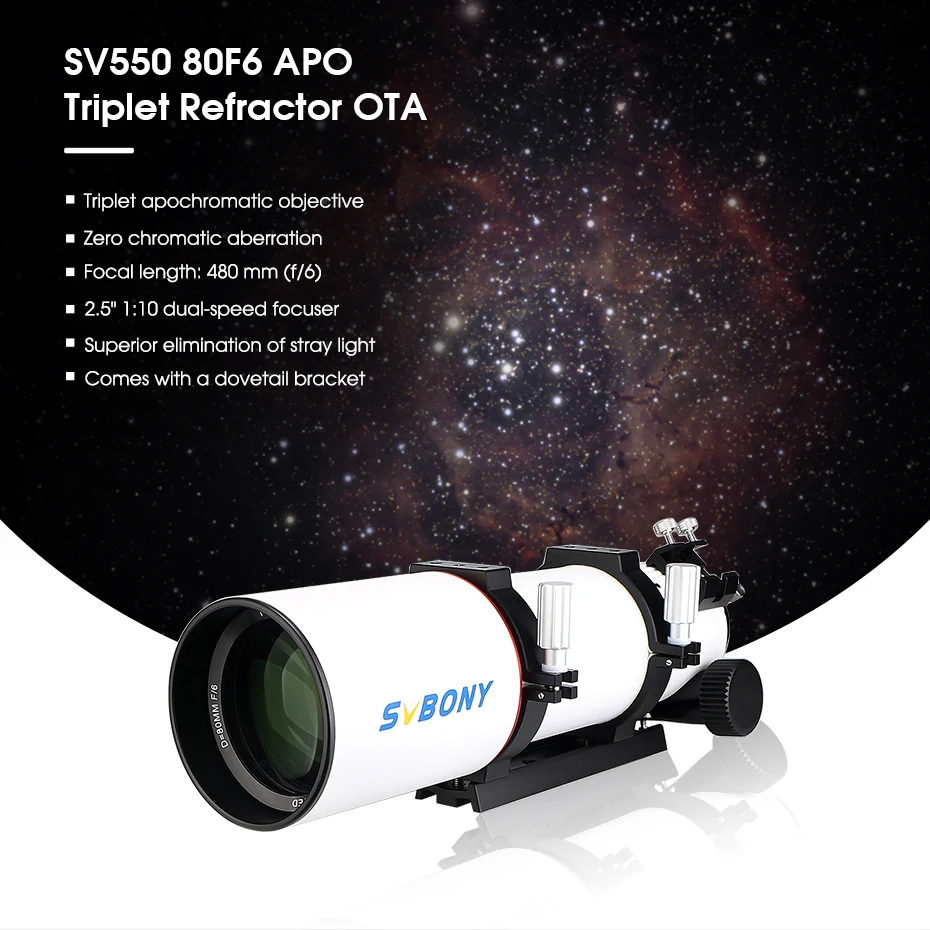

SVBONY SV550 80F6 APO Triplet Refractor OTA

The SV550 APO Triplet refractor with 80mm aperture and fast f/6 focal ratio, is a great travel telescope for deep-sky observation and astrophotography.

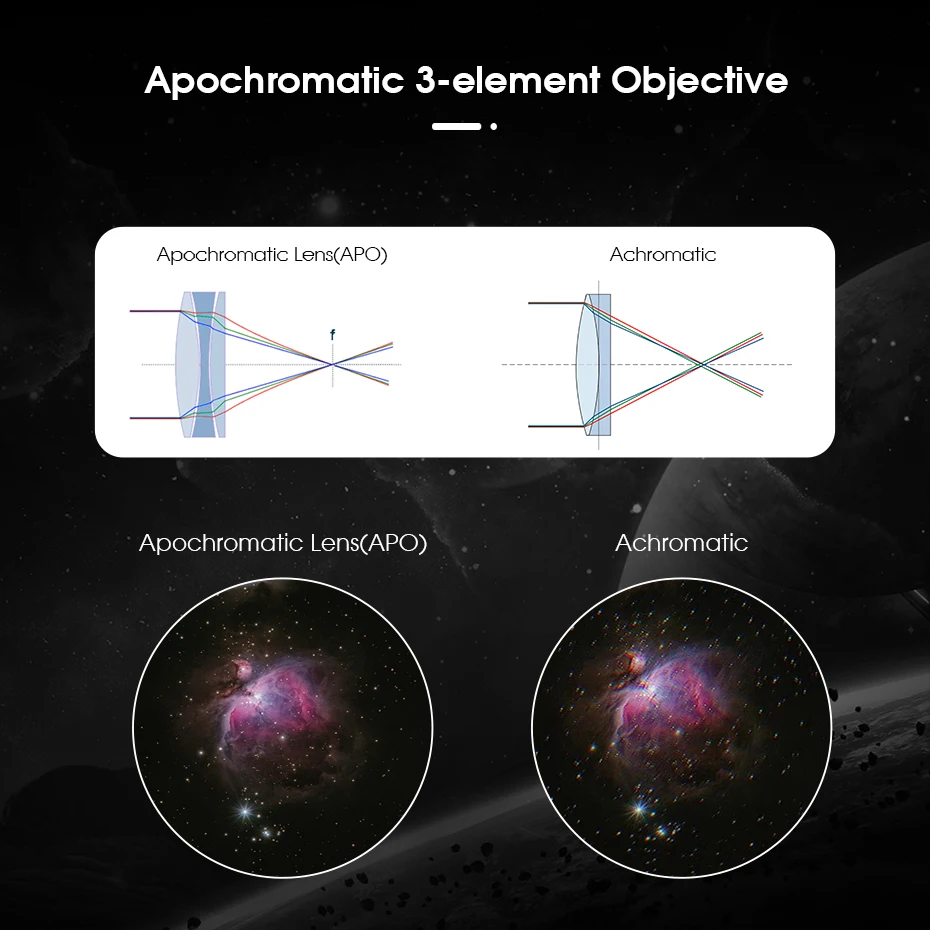

Apochromatic 3-element Objective

Apochromatic triplet, it uses a series of three lenses. It provides better correction of aberration and significantly reduces dispersion. It reduces chromatic aberration, and it corrects for two wavelengths to reduce spherical aberration. The apochromatic triplet objective provides high-quality, sharp and high-contrast images.

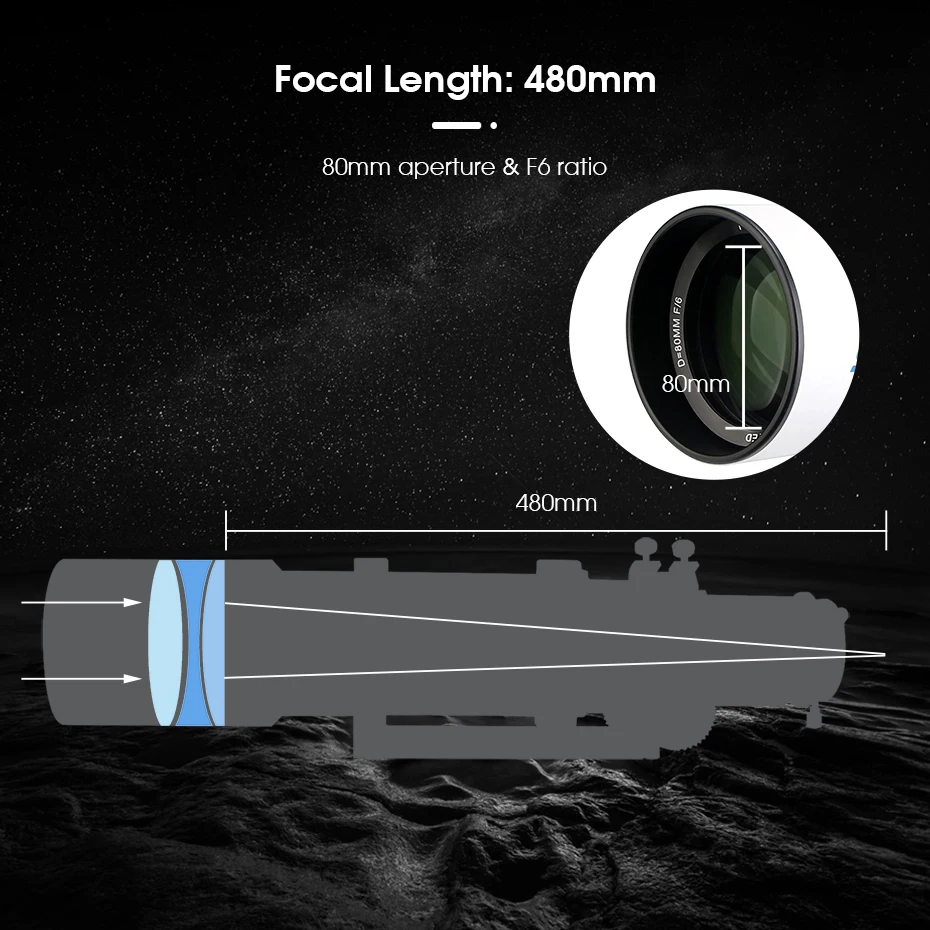

Focal Length: 480mm

The focal length is 480mm, suitable for deep sky observation and photography, for galaxies, nebulae, star clusters and other deep sky objects.

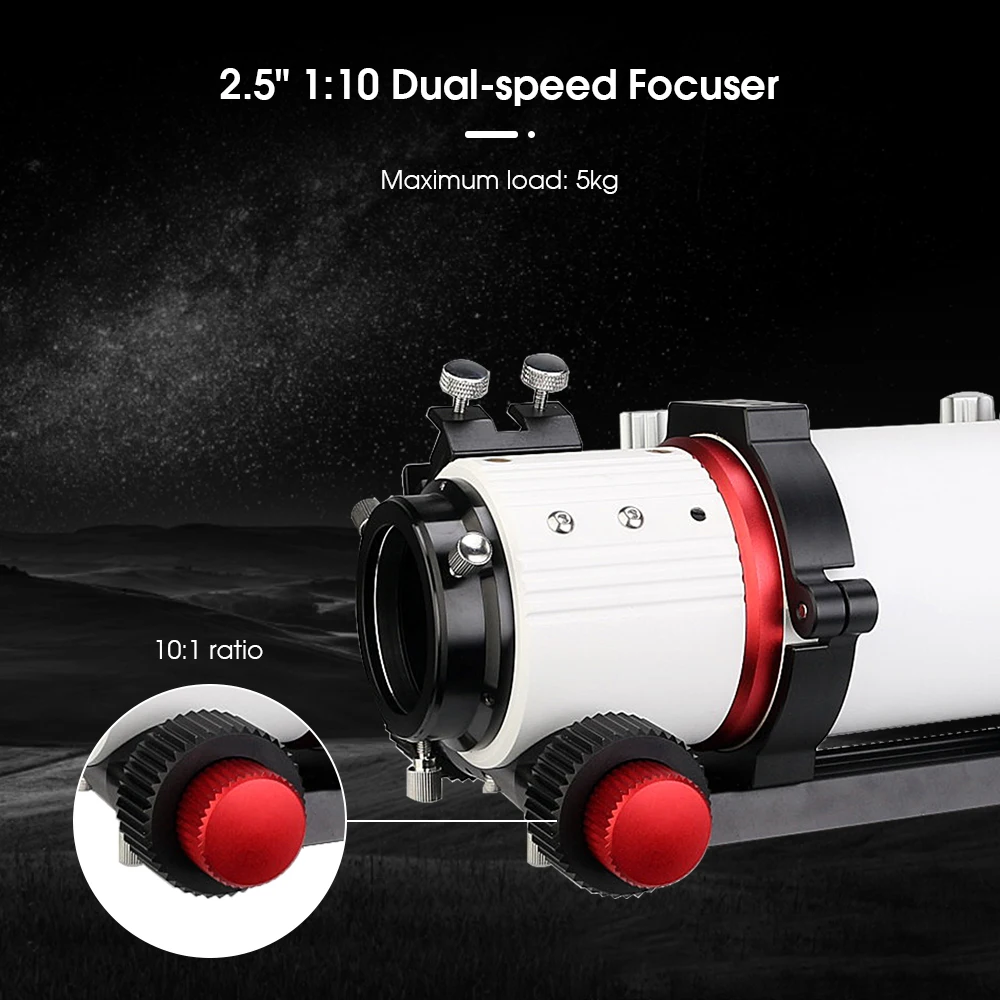

2.5″ 1:10 Dual-speed Focuser

The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.

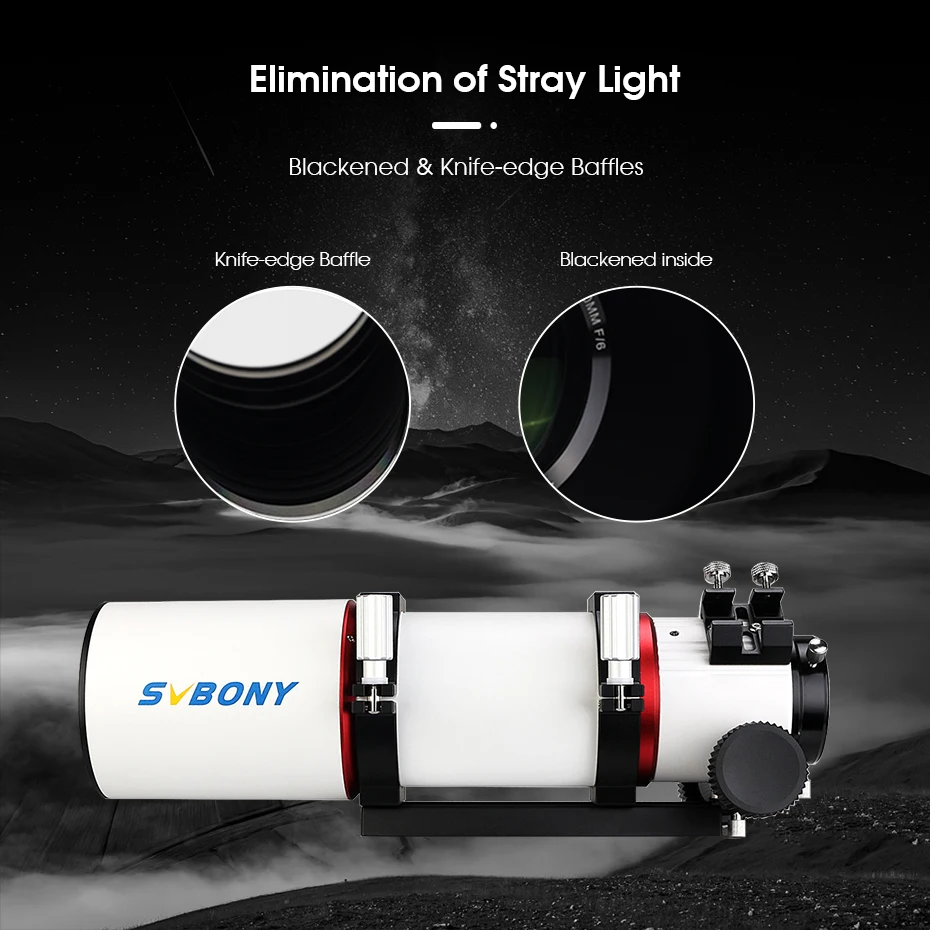

Elimination of Stray Light

Blackened inside and knife-edge baffle are for reduction of stray light and improvement of image contrast.

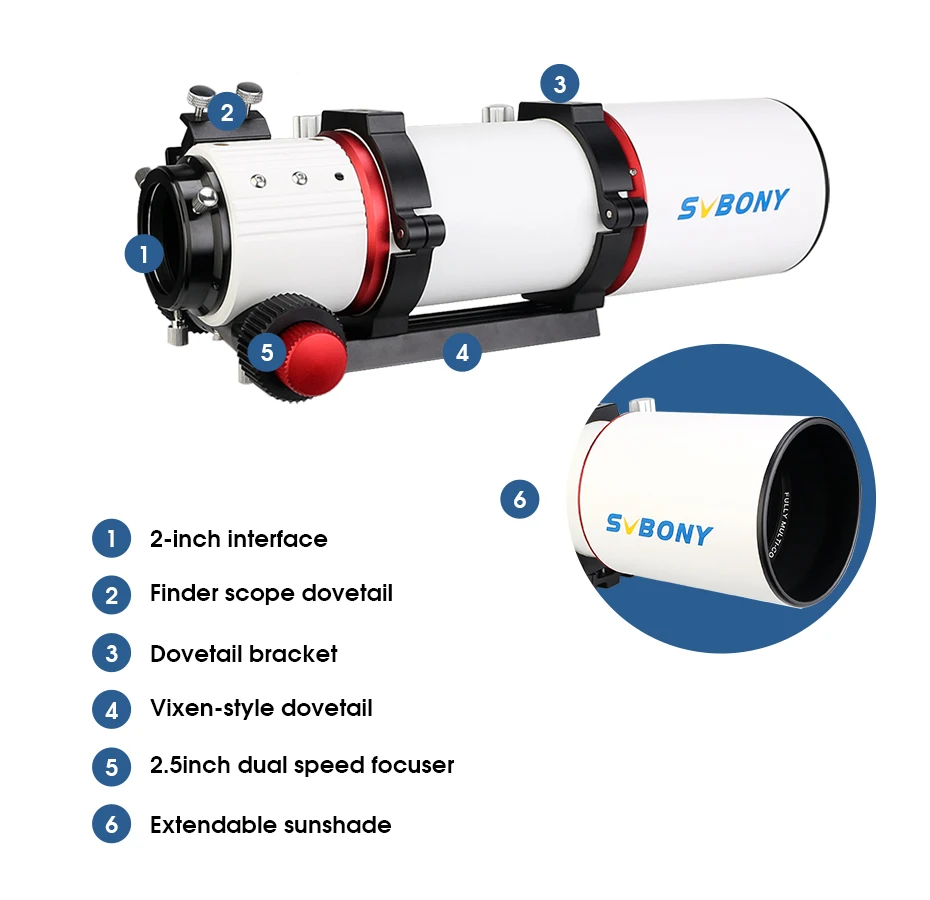

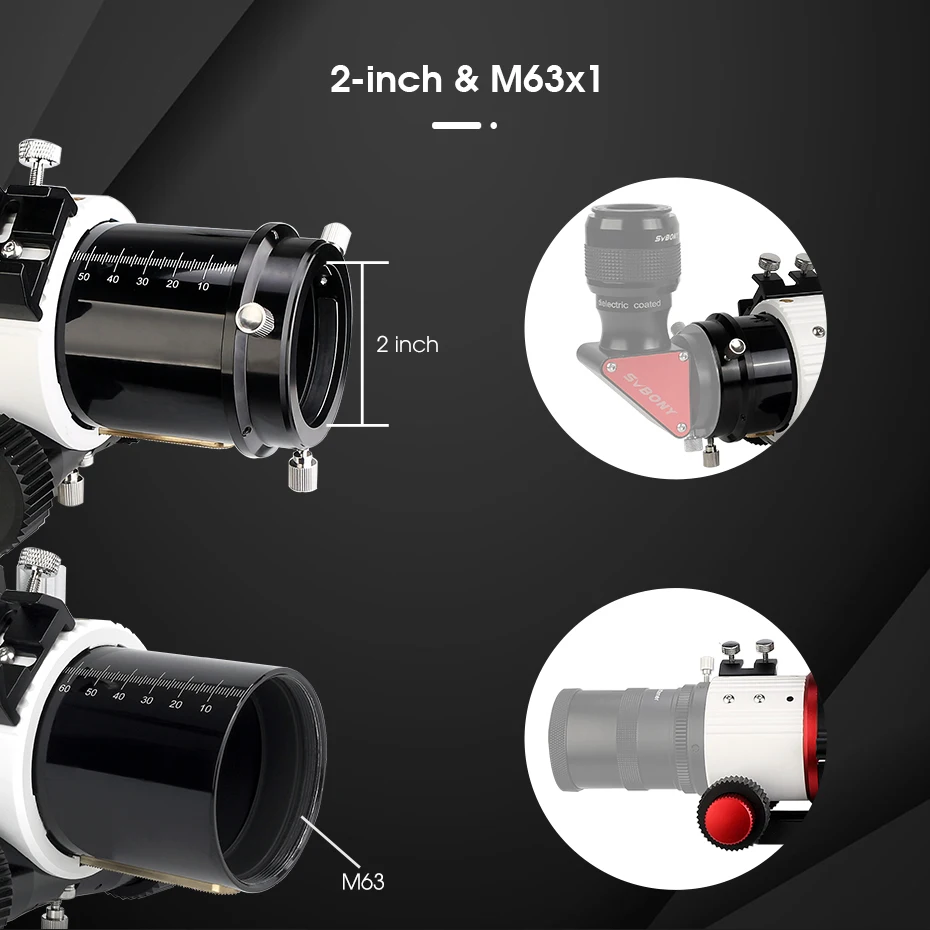

2-inch & M63x1

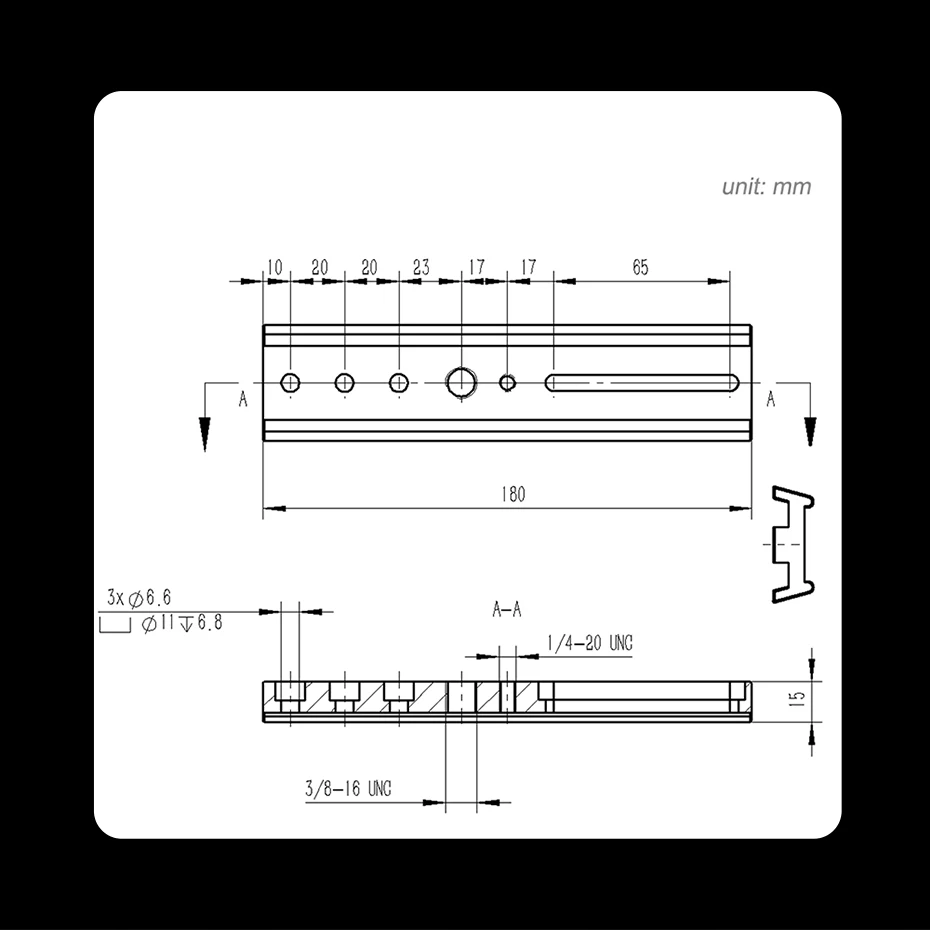

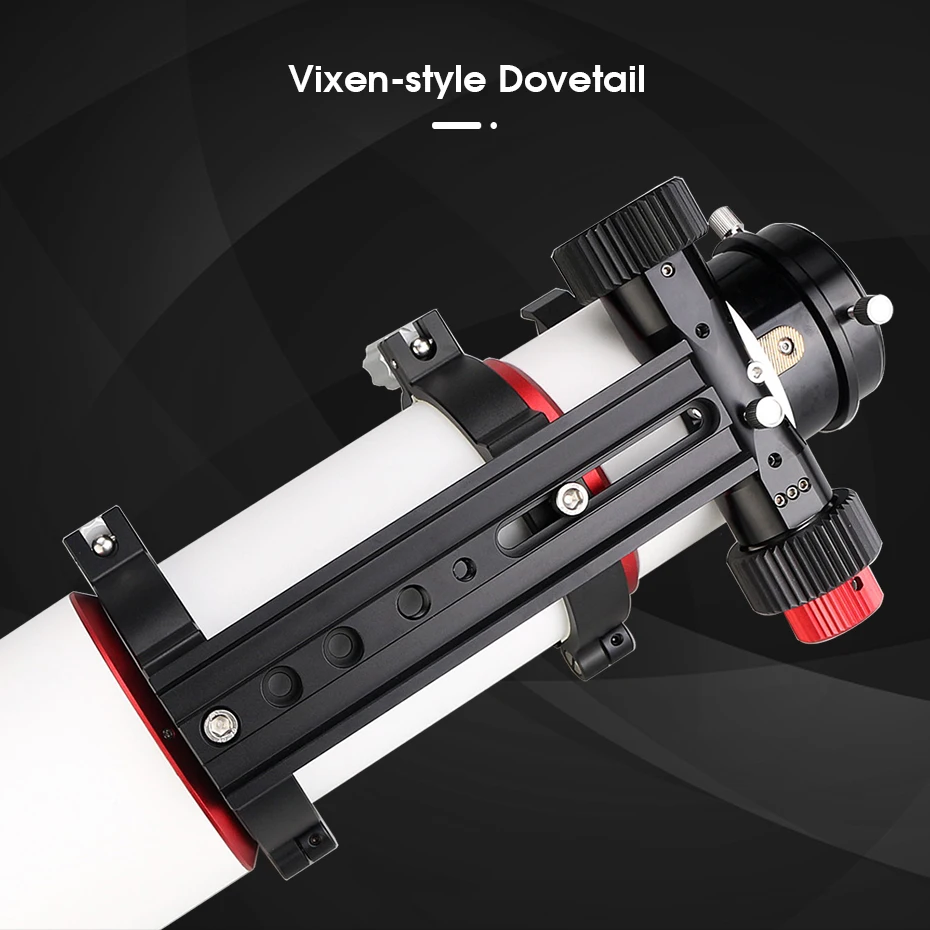

Vixen-style Dovetail

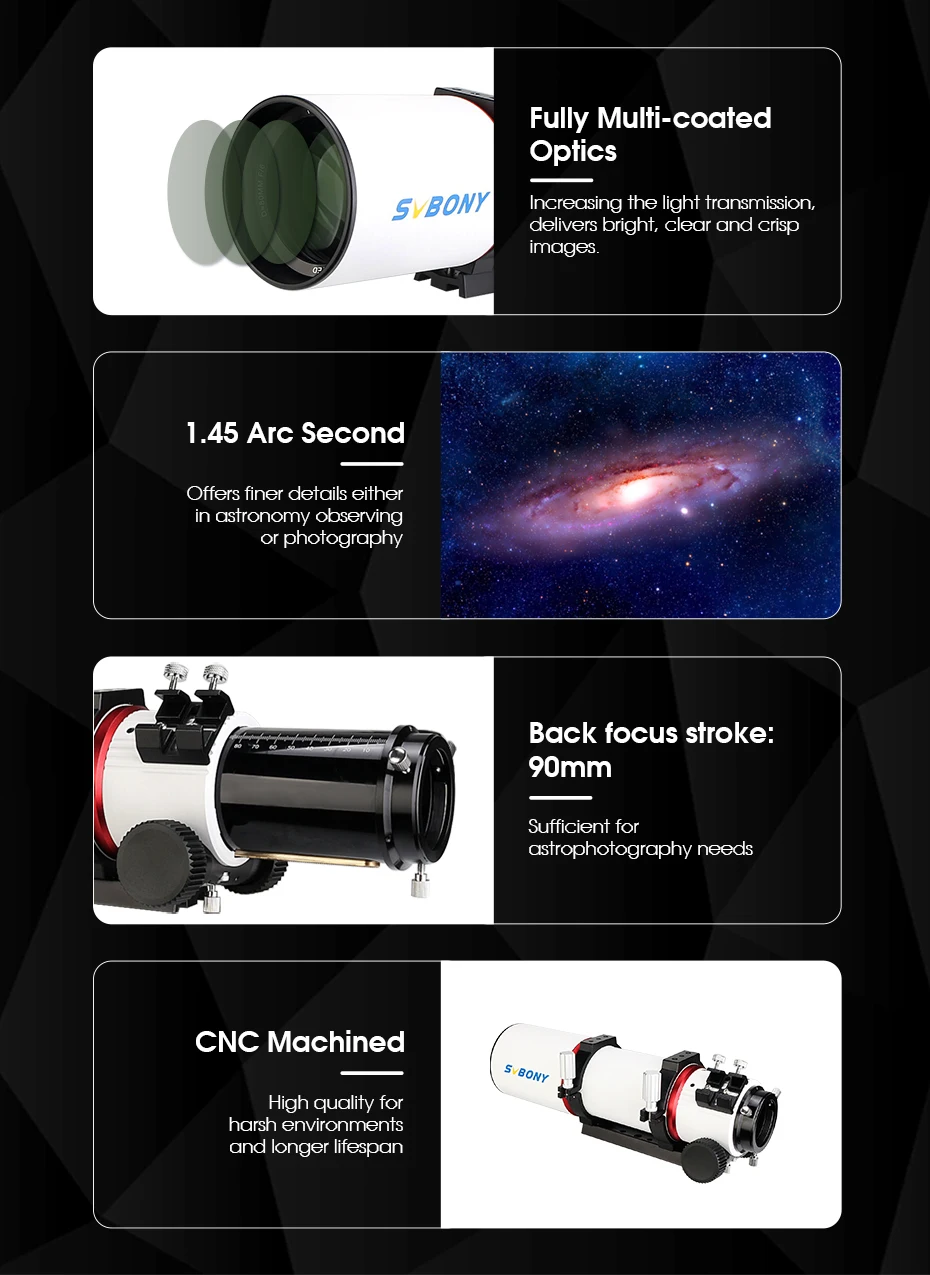

Fully Multi-coated Optics;1.45 Arc Second;Back focus stroke: 90mm;CNC Machined

Notice:

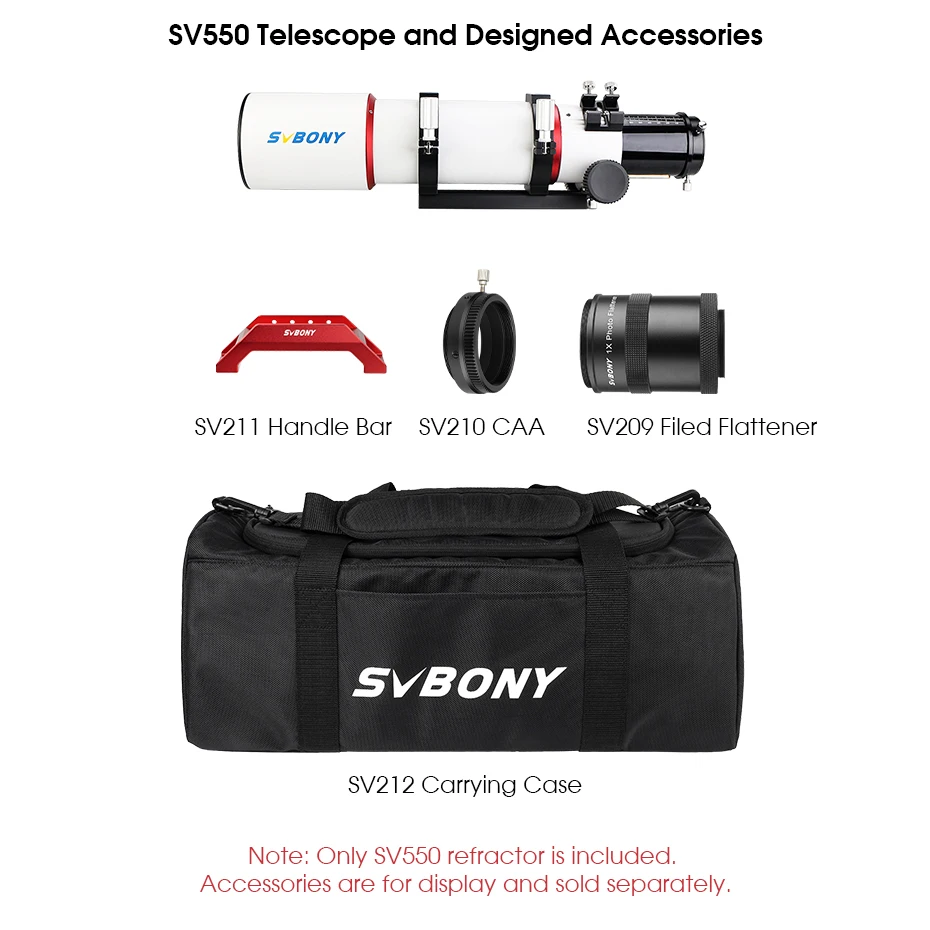

SV550 set:SV550-SV209-SV210-SV211-SV212-SV198

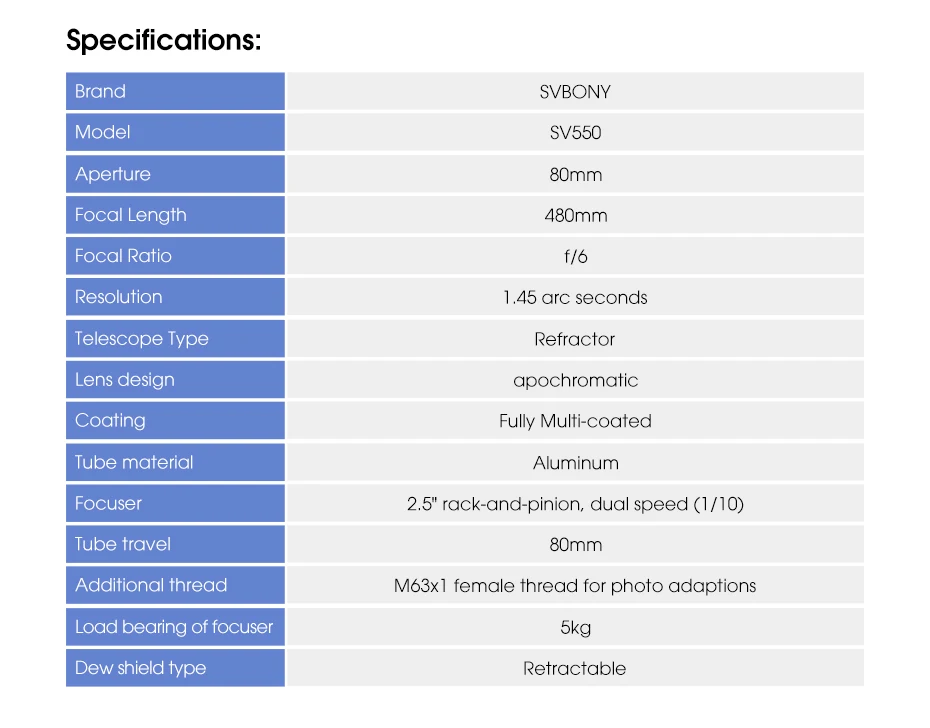

Specifications:

1.Brand: SVBONY
2.Model: SV550
3.Aperture: 80mm
4.Focal Length: 480mm
5.Focal Ratio: f/6
6.Resolution: 1.45 arc seconds
7.Telescope Type: Refractor
8.Lens design: apochromatic
9.Coating: Fully Multi-coated
10.Tube material: Aluminum
11.Focuser: 2.5″ rack-and-pinion, dual speed (1/10)
12.Tube travel: 80mm
13.Additional thread: M63x1 female thread for photo adaptions
14.Load bearing of focuser: 5kg
15.Dew shield type: Retractable
